Tkinter Scrollbar

Scrollbar(parent window, options .. )

import tkinter as tk
from tkinter import *
my_w=tk.Tk()
my_w.geometry("350x200")
sb = tk.Scrollbar(my_w,cursor='hand1')
sb.pack(side=RIGHT,fill=Y)
l1 = tk.Listbox(my_w,height=8,width=90,
	bg='yellow', yscrollcommand = sb.set )
l1.pack(side=LEFT,padx=15)
for i in range(1, 40): # multiple lines added to Listbox
    l1.insert(END, "Line No : " + str(i))
sb.config( command = l1.yview )

my_w.mainloop()

Options

orient

sb = tk.Scrollbar(my_w,orient='horizontal')

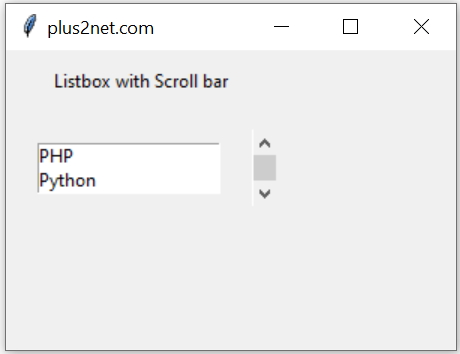

Using Scrollbar with Listbox

import tkinter as tk
my_w = tk.Tk()
my_w.geometry("300x200")  # Size of the window
my_w.title("plus2net.com")
l1=tk.Label(my_w,text='Listbox with Scroll bar')
l1.grid(row=1,column=1,columnspan=2,pady=10)
sb = tk.Scrollbar(my_w)
sb.grid(row=2, column=2,  sticky='e')
my_list=['PHP','Python','MySQL','HTML','Jquery','Java','CSS','Perl']
l1 = tk.Listbox(my_w,height=2, yscrollcommand = sb.set)
l1.grid(row=2,column=1,padx=20,pady=20)

for element in my_list: # adding elements to Listbox
    l1.insert(tk.END,element)
sb.config( command = l1.yview )
my_w.mainloop()  # Keep the window open

Using Scrollbar with Text

import tkinter  as tk
my_w = tk.Tk()
my_w.geometry("400x200")

sb = tk.Scrollbar(my_w)
sb.grid(row=1, column=2,  sticky='w')

t1 = tk.Text(my_w, height=3, width=35)
t1.grid(row=1,column=1,padx=20,pady=20)

my_str1='1\n2\n3\n4\n5\n6\n7\n8\n9\n10\n11\n12\n13\n14'
t1.insert(tk.END, my_str1)

sb.config( command = t1.yview )
my_w.mainloop()

Scrollbar Options

for options in scroll_x.config():
    print(options + ": " + str(scroll_x[options]))

• activebackground: Color of the scrollbar when actively clicked.
• activerelief: Relief style when the scrollbar is active (e.g., raised).
• background / bg: Background color of the scrollbar.
• bd / borderwidth: Width of the scrollbar border.
• command: Function to link scrolling actions, such as `.yview` or `.xview` for text and canvas widgets.
• cursor: Mouse cursor appearance when hovering over the scrollbar.
• elementborderwidth: Width of the element's internal border.
• highlightbackground: Color outside the focus ring.
• highlightcolor: Color when the scrollbar is in focus.
• highlightthickness: Thickness of the highlight border.
• jump: Jumps to the exact location when clicked if set to `1`.
• orient: Orientation of the scrollbar (horizontal or vertical).
• relief: Border style, like "sunken" or "flat".
• repeatdelay: Time in milliseconds before repeating a scroll action when holding the button.
• repeatinterval: Interval for repeating scroll actions when the button is held down.
• takefocus: Defines if the scrollbar can receive focus.
• troughcolor: Color of the trough (scrollbar background track).
• width: Width of the scrollbar.

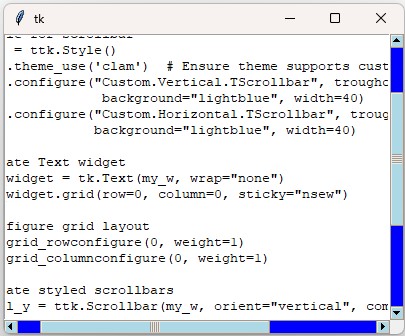

Adding style to Scrollbal by using ttk

import tkinter as tk
from tkinter import ttk

my_w = tk.Tk()
my_w.geometry("400x300")

# Style for scrollbar
style = ttk.Style()
style.theme_use('clam')  # Ensure theme supports customization
style.configure("Custom.Vertical.TScrollbar", troughcolor="blue",
                 background="lightblue", width=40)
style.configure("Custom.Horizontal.TScrollbar", troughcolor="blue",
                background="lightblue", width=40)

# Create Text widget
text_widget = tk.Text(my_w, wrap="none")
text_widget.grid(row=0, column=0, sticky="nsew")

# Configure grid layout
my_w.grid_rowconfigure(0, weight=1)
my_w.grid_columnconfigure(0, weight=1)

# Create styled scrollbars
scroll_y = ttk.Scrollbar(my_w, orient="vertical", command=text_widget.yview,
                          style="Custom.Vertical.TScrollbar")
scroll_y.grid(row=0, column=1, sticky="ns")

scroll_x = ttk.Scrollbar(my_w, orient="horizontal", command=text_widget.xview,
                         style="Custom.Horizontal.TScrollbar")
scroll_x.grid(row=1, column=0, sticky="ew")

# Link scrollbars to text widget
text_widget.config(yscrollcommand=scroll_y.set, xscrollcommand=scroll_x.set)

my_w.mainloop()

Adding scrollbar to Treeview
