Delete a Selected MySQL Record from Tkinter Treeview

This tutorial extends displaying MySQL records in Tkinter Treeview. The user selects a Treeview row, confirms the delete operation, and Python deletes the corresponding record from the MySQL student table.

The Treeview row is removed only after MySQL confirms that exactly one database record was deleted.

Treeview selection
        |
        v
Read database ID from iid
        |
        v
Ask user for confirmation
        |
        v
DELETE FROM student WHERE id=...
        |
        v
Database confirms deletion
        |
        v
Remove Treeview item

Use MySQL ID as the Treeview iid 🔝

When loading the MySQL rows, use the unique database primary key as the Treeview item ID:

tree.insert(
    '',
    tk.END,
    iid=str(row['id']),
    values=(row['id'],row['name'],row['class'],row['mark'],row['gender'])
)

This gives us a direct relationship:

MySQL student.id = 14
Treeview iid     = '14'

When the Treeview item is selected, its iid immediately tells us which MySQL record should be deleted.

Read the Selected Treeview Row 🔝

A common unsafe pattern is:

selected_item=tree.selection()[0]

If no row is selected, this raises an IndexError.

Check the selection first:

selected=tree.selection()

if not selected:
    messagebox.showwarning('Delete Record','Select a record to delete.')
    return

selected_item=selected[0]

Get the Selected Row Values

values=tree.item(selected_item,'values')
student_name=values[1]

We can use the name in the confirmation dialog so the user knows exactly which record is about to be removed.

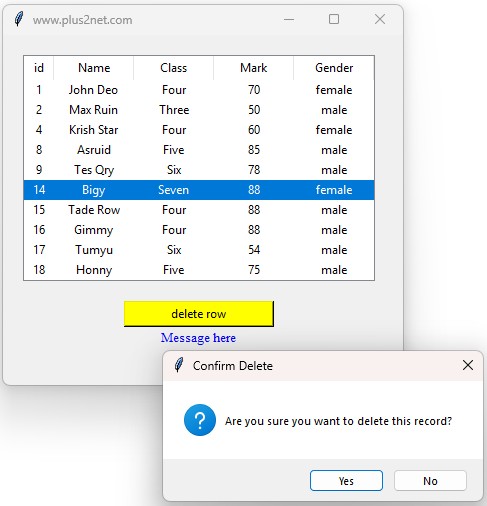

Ask the User before Deleting 🔝

Use messagebox.askyesno():

confirmed=messagebox.askyesno(
    'Confirm Delete',
    f'Delete ID {selected_item} - {student_name}?'
)

if not confirmed:
    return

If the user chooses No, no database operation is performed.

Delete the Selected Record from MySQL 🔝

Use a parameterized DELETE query:

query=text('DELETE FROM student WHERE id=:delete_id')

Convert the Treeview item ID to an integer:

delete_id=int(selected_item)

Then execute:

with engine.begin() as conn:
    result=conn.execute(query,{'delete_id':delete_id})
    deleted_rows=result.rowcount

The database ID is passed separately from the SQL statement rather than being concatenated into the query string.

Why Use engine.begin()? 🔝

The database operation is placed inside:

with engine.begin() as conn:

If the block finishes successfully, SQLAlchemy commits the transaction. If the database raises an exception, the transaction is rolled back.

This replaces the older pattern of keeping one connection open and calling:

my_conn.commit()

manually after each operation.

Remove the Row from Treeview after Database Success 🔝

After the transaction has completed, check the affected-row count:

if deleted_rows==1:
    tree.delete(selected_item)
    show_status('Record deleted.','green')
else:
    show_status('Record was not found in the database.','red')

If MySQL reports zero deleted rows, the Treeview item remains visible. This signals that the GUI and database should be checked or reloaded.

Load MySQL Records into Treeview 🔝

A reusable loading function helps keep the Treeview synchronized.

def load_records():
    for item in tree.get_children():
        tree.delete(item)

    query=text('SELECT id,name,class,mark,gender FROM student ORDER BY id LIMIT 10')

    with engine.connect() as conn:
        rows=conn.execute(query).mappings().all()

    for row in rows:
        tree.insert('',tk.END,iid=str(row['id']),values=(row['id'],row['name'],row['class'],row['mark'],row['gender']))

Clearing existing rows first prevents duplicate Treeview iid values when the data is refreshed.

Complete Tkinter Treeview MySQL Delete Program 🔝

import tkinter as tk
from tkinter import ttk, messagebox
from sqlalchemy import create_engine, text
from sqlalchemy.exc import SQLAlchemyError

engine=create_engine('mysql+mysqldb://id:pw@localhost/my_db')

root=tk.Tk()
root.geometry('560x380')
root.title('Delete MySQL Record - plus2net')

status_var=tk.StringVar()

def show_status(message,color):
    status_var.set(message)
    status_label.config(fg=color)
    root.after(3000,lambda:status_var.set(''))

def load_records():
    for item in tree.get_children():
        tree.delete(item)

    query=text('SELECT id,name,class,mark,gender FROM student ORDER BY id LIMIT 10')

    try:
        with engine.connect() as conn:
            rows=conn.execute(query).mappings().all()
    except SQLAlchemyError as e:
        print(e)
        show_status('Unable to load database records.','red')
        return

    for row in rows:
        tree.insert('',tk.END,iid=str(row['id']),values=(row['id'],row['name'],row['class'],row['mark'],row['gender']))

def selection_changed(event=None):
    delete_btn.config(state=tk.NORMAL if tree.selection() else tk.DISABLED)

def confirm_delete():
    selected=tree.selection()

    if not selected:
        messagebox.showwarning('Delete Record','Select a record to delete.')
        return

    selected_item=selected[0]
    values=tree.item(selected_item,'values')
    student_name=values[1] if len(values)>1 else ''

    confirmed=messagebox.askyesno('Confirm Delete',f'Delete ID {selected_item} - {student_name}?')

    if confirmed:
        delete_record(selected_item)

def delete_record(selected_item):
    try:
        delete_id=int(selected_item)
    except ValueError:
        show_status('Invalid database ID.','red')
        return

    query=text('DELETE FROM student WHERE id=:delete_id')

    try:
        with engine.begin() as conn:
            result=conn.execute(query,{'delete_id':delete_id})
            deleted_rows=result.rowcount
    except SQLAlchemyError as e:
        print(e)
        show_status('Database delete failed.','red')
        return

    if deleted_rows==1:
        tree.delete(selected_item)
        delete_btn.config(state=tk.DISABLED)
        show_status(f'Record {delete_id} deleted.','green')
    else:
        show_status('Record was not found in MySQL. Reload the data.','red')

tree=ttk.Treeview(root,columns=('id','name','class','mark','gender'),show='headings',selectmode='browse',height=10)
tree.grid(row=0,column=0,columnspan=3,padx=20,pady=20)

tree.column('id',width=50,anchor='center')
tree.column('name',width=120,anchor='w')
tree.column('class',width=90,anchor='center')
tree.column('mark',width=70,anchor='center')
tree.column('gender',width=90,anchor='center')

tree.heading('id',text='ID')
tree.heading('name',text='Name')
tree.heading('class',text='Class')
tree.heading('mark',text='Mark')
tree.heading('gender',text='Gender')

delete_btn=tk.Button(root,text='Delete Selected Record',state=tk.DISABLED,command=confirm_delete)
delete_btn.grid(row=1,column=0,pady=5)

reload_btn=tk.Button(root,text='Reload Records',command=load_records)
reload_btn.grid(row=1,column=1,pady=5)

status_label=tk.Label(root,textvariable=status_var)
status_label.grid(row=2,column=0,columnspan=3,pady=8)

tree.bind('<<TreeviewSelect>>',selection_changed)

load_records()
root.mainloop()

What Does rowcount Tell Us? 🔝

The DELETE targets a primary key:

DELETE FROM student WHERE id=:delete_id

So the expected outcomes are:

A primary-key DELETE should not normally affect more than one row.

Common Treeview/MySQL Delete Errors 🔝

1. Accessing selection()[0] without Checking

Always test whether a row has been selected.

2. Deleting from Treeview before MySQL

Delete from the persistent database first. Remove the GUI row only after database success.

3. Forgetting User Confirmation

Deletion is destructive. A confirmation dialog reduces accidental removal.

4. Keeping a Connection Open for the Entire Application

Create the SQLAlchemy Engine once and use short-lived connections or transaction contexts when required.

5. Forgetting to Commit the DELETE

engine.begin() handles commit automatically when the block succeeds.

6. Building the DELETE Query with String Concatenation

Use:

WHERE id=:delete_id

and pass the value separately.

7. Showing Raw Database Details to the End User

For a tutorial or application, log or print the technical exception and show the user a simpler database-error message.

8. Foreign Key Constraint Prevents Deletion

If another table references the selected student record, MySQL can reject the DELETE depending on the foreign-key rules. The exception should be handled and the Treeview row must remain visible.

9. Record Was Already Deleted Elsewhere

If rowcount is zero, the Treeview may be stale. Reload the records instead of removing the item blindly.

Frequently Asked Questions 🔝

Treeview MySQL Delete Summary 🔝

• Use the MySQL primary key as Treeview iid.
• Check selection() before reading the selected item.
• Ask the user to confirm destructive operations.
• Use the selected iid as the database record ID.
• Use a parameterized DELETE query.
• Use engine.begin() for transactional DELETE operations.
• Remove the Treeview row only after the database operation succeeds.
• rowcount == 1 confirms the expected deletion.
• If rowcount == 0, keep the GUI row and reload data if necessary.
• Foreign-key constraints can prevent deletion.
• Do not show raw database errors unnecessarily in the GUI.
• A reusable load_records() function helps resynchronize Treeview with MySQL.
